Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness

Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness
Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness

Large Image :  Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness

Product Details:
Place of Origin: Germany
Brand Name: JL Goslar
Model Number: 1 mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 Roll/Rolls
Price: $497.00 - $552.22 / Roll
Packaging Details: It is packed in wooden boxes or customized according to the requirement of a user.
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 10000 Roll/Rolls per Year

Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness

Description
Properties: Medical Shielding, X-Ray Scanner Housings,Personal Security System Instrument Classification: Class I
Material: >99.5% Lead With Tin Coating And One Self-adhesive Side Thickness: 1 Mm
Length: 5000 Mm Width(standard): 1000 Mm
Port: Shanghai
High Light:

Radiation Proof SK125 Lead Sheet

,

SK125 Lead Sheet Roll

,

SK125 Lead Sheet 1mm Thickness

Lead Plate with Radiation-proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness

Product Description

SK125 Lead sheet is composed of radiation shielding layer made of lead, corrosion-resistant tin coating, self-adhesive coating, adhesive protective film. This kind of lead sheet is environmental friendly with tinned surface preventing direct contact with lead during installation. It can shield various lead equivalent through simple adhesion of several layers of SK. It can be applied to medical care, NDT, personal safety system, etc.

Product Structure
Glue Cross-linked acryl glue featuring high contact adhesion and excellent shearing strength at high temperatures.The glue layer is covered with impregnated foil.



Thickness

Glue 0.090mm
Covering foil 0.075mm
Total 0.165mm
Contact Adhesion   1,700N/m
Resistance to shear FINAT TM8 on stainless steel >400 hours at 23℃
Peel Adhesion(180°) FINAT TM1 on stainless steel 28N/25mm after 24 hours
Thermal properties Min. Application temperature 18℃
Temperture range-permanent -40 to 150 ℃
Temperture range-short-term Up to 190 ℃
Minimum contact force on solid surface



>1N/25mm²



Sheet lead Substrate min. 99.5% lead
Dimensions of composite material Width(standard) 1,000mm
Length 10,000mm(0.5mm thickness)
5,000mm(1.0mm thickness)
4,100mm(1.5mm thickness)
2,500mm(2.0mm thickness)
Other lengths on request
Thickness(standard) 0.5/1.0/1.5/2.0 mm
Thickness variation -0/+0.06mm
Delivery unit Reeled on pasteboard tube (ID76)



Product Applications
Medical care
1.Shielded room, wall, door, floor, ceiling or panel wall
2.Fixed / movable protective door
3.Shielding equipment
4.Retrofit / upgrade X-ray rooms to meet more stringent requirements
NDT X-ray shielding housing
Personal safety system

1.Airport / high speed rail and other luggage scanning

2.Luggage scanning in other safe places

Others Transport box for radioactive components/X-ray shield panel



SK 125SK 125 04Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness 2



Company Profile

 0b5128986ecfcebfe1815c3fb82d836



Chengxin Radiation Protection Co., Ltd., located in Jiangsu, China, is a technological innovation enterprise specializing in R&D,production and engineering application of radiation protection equipments.The products of the company cover all kinds of radiation shielding for industrial NDT, security check, medicine, nulear power, high energy physics and other fields. We provide all life service from plan design, production manufacturing to installation, commissioning and maintenance.

Our company has about 18 years of experience in this field. Our representative customers are Siemens, Chinese National Nuclear Corporation, China General Nuclear Power Group, the Institute of High Energy Physics, etc.

Our products are as follows:
1)Optics Enclosure; 2) Radiation Protection Cabinet ; 3) Radiation Protection Door; 4) Lead Blanket; 5) SK 125 Lead Sheet; 6) Lead Brick; 7)Lead Sheet; 8)Lead Glass; 9)Shielded Box For Isotope Transport and Storage; 10) Shielded Container For Isotope Transport and Stora.

Our term

 290346461611806197    286962528134143167



Certifications



Radiation Proof Adhesive Layer SK125 Lead Sheet Roll 1mm Thickness 6

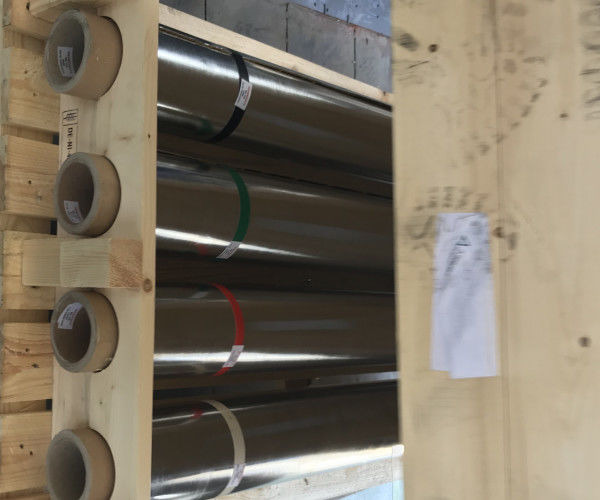

Packaging & Shipping

6      IMG_6381               IMG_6377





FAQ



1. Can you provide samples?
Yes, we can provide samples for inspection.

2. Can you do it according to our own design?
Yes, OEM and ODM orders are acceptable.

3. What is the production lead time?
Many of the available items are in stock and can be shipped within a week. Inventory is changing every day, please confirm with our sales.
New products take 15-30 days, the order quantity is different.

4. What is the minimum order quantity?
The minimum order quantity of each product is different. Please contact us.

5. Why choose us?
We are a factory with core technology of quality control and competitive price.
