99.99% Pure Lead Shielding Bricks with Interlocking Design and Customizable Sizes for CT Rooms

99.99% Pure Lead Shielding Bricks with Interlocking Design and Customizable Sizes for CT Rooms
99.99% Pure Lead Shielding Bricks with Interlocking Design and Customizable Sizes for CT Rooms

Large Image :  99.99% Pure Lead Shielding Bricks with Interlocking Design and Customizable Sizes for CT Rooms

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Chengxin
Certification: CE, ISO
Model Number: CT-LB-001
Payment & Shipping Terms:
Minimum Order Quantity: 500 Kilograms
Price: $3.47 - $3.79 / Kilogram
Packaging Details: Wooden cases or customized packaging as per customer requirements
Delivery Time: 7-10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Kilograms per Month
Contact Now

99.99% Pure Lead Shielding Bricks with Interlocking Design and Customizable Sizes for CT Rooms

Description
Material: 99.99% Pure Lead Or Lead-Antimony Alloy Thickness: 8 Mm - 200 Mm (customizable)
Length: 100 Mm - 800 Mm (customizable) Width: 50 Mm - 300 Mm (customizable)
Type: Single-Herringbone / Double-Herringbone Interlocking Application: CT Room / Diagnostic Imaging / Radiology Suite
Instrument Grade: Class I
Highlight:

CT Room Shielding

,

Modular Lead Bricks

,

Diagnostic Imaging Protection

CT Room Modular Interlocking Lead Shielding Bricks 99.99% Pure Lead Custom Sizes 8-200mm for Diagnostic Imaging
Our CT Room Modular Interlocking Lead Shielding Bricks are precision-engineered radiation protection components designed specifically for diagnostic imaging environments. Manufactured from 99.99% pure lead, these modular bricks provide superior attenuation of scattered X-ray radiation in CT scan rooms, ensuring compliance with international radiation safety standards while offering exceptional installation flexibility.
The interlocking dovetail design enables rapid assembly, reconfiguration, and expansion of shielding walls without the need for permanent construction. As a dedicated lead bricks manufacturer with decades of metallurgical expertise, we understand that CT room shielding demands both uncompromising radiation protection and operational adaptability.
Key Features
  • CT-Optimized Shielding Performance: 99.99% pure lead construction delivers maximum attenuation of diagnostic X-ray energies typically encountered in CT imaging suites, ensuring staff and patient safety in adjacent areas.

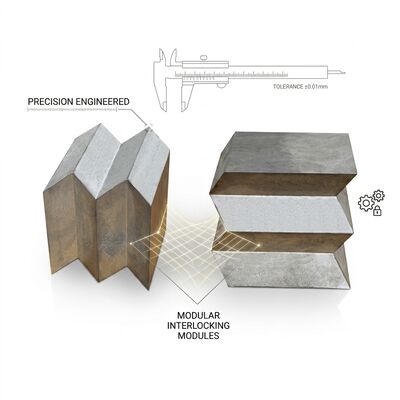

  • Modular Interlocking Design: Precision dovetail grooves on all four edges enable secure brick-to-brick connection without adhesives or fasteners. Walls can be assembled, disassembled, and reconfigured as facility layouts change.
  • Customizable Dimensions: Available in thicknesses from 8mm to 200mm, lengths from 100mm to 800mm, and widths from 50mm to 300mm. Custom sizing accommodates unique room geometries and shielding calculations.
  • Smooth Flat Surface Finish: Each brick undergoes precision finishing to achieve perfectly flat mating surfaces, eliminating radiation leakage paths and ensuring a professional installation appearance suitable for clinical environments.
  • Dual Material Options: Choose between pure lead (99.99%) for maximum density and shielding efficiency, or lead-antimony alloy for enhanced mechanical strength and wear resistance in high-traffic areas.
  • CE & ISO Certified: Manufactured under ISO 9001 quality management standards with CE certification, providing documented compliance for hospital procurement and regulatory inspection requirements.
  • Single & Double Interlocking Profiles: Available in both single-herringbone and double-herringbone configurations to match specific wall design requirements and desired assembly complexity.
Technical Specifications
Parameter Specification
Base Material 99.99% Pure Lead or Lead-Antimony Alloy
Lead Purity ≥ 99.994% (verified)
Thickness Range 8 mm - 200 mm (customizable)
Length Range 100 mm - 800 mm (customizable)
Width Range 50 mm - 300 mm (customizable)
Interlocking Type Single-Herringbone / Double-Herringbone Dovetail
Surface Finish Smooth, flat, sharp right-angle edges
Instrument Grade Class I
Standard Compliance National standards (current edition), CE, ISO 9001
Applications
Our CT room modular lead shielding bricks are purpose-built for diagnostic imaging environments where reliable radiation containment is critical. Primary applications include:
  • Shielding walls and partitions in computed tomography (CT) scanner rooms
  • Radiology department expansion areas
  • Mobile CT trailer units and temporary diagnostic imaging facilities
  • General X-ray diagnostic rooms and dental cone-beam CT suites
  • DEXA scanning rooms and veterinary diagnostic imaging facilities
  • Shielded control booths and operator protection barriers
The modular nature of these bricks makes them particularly valuable for hospitals undergoing renovation or expanding their imaging departments, as shielding walls can be relocated and reconfigured without demolition and reconstruction costs.
Packaging & Quality Assurance
Every batch of lead shielding bricks undergoes rigorous quality inspection before shipment, including dimensional tolerance verification, surface finish assessment, purity certification via spectrometry analysis, and interlocking fit testing.
Products are packed in sturdy wooden cases with internal cushioning to prevent surface damage during transit. Custom packaging solutions are available for large-volume orders or specialized shipping requirements. Our factory maintains comprehensive quality records for full traceability, and each shipment includes material certification documentation upon request.
With guaranteed 99.994% lead purity, precision-engineered interlocking profiles, and flexible customization, our CT room modular lead bricks provide the reliable radiation shielding performance your diagnostic imaging facility demands.
